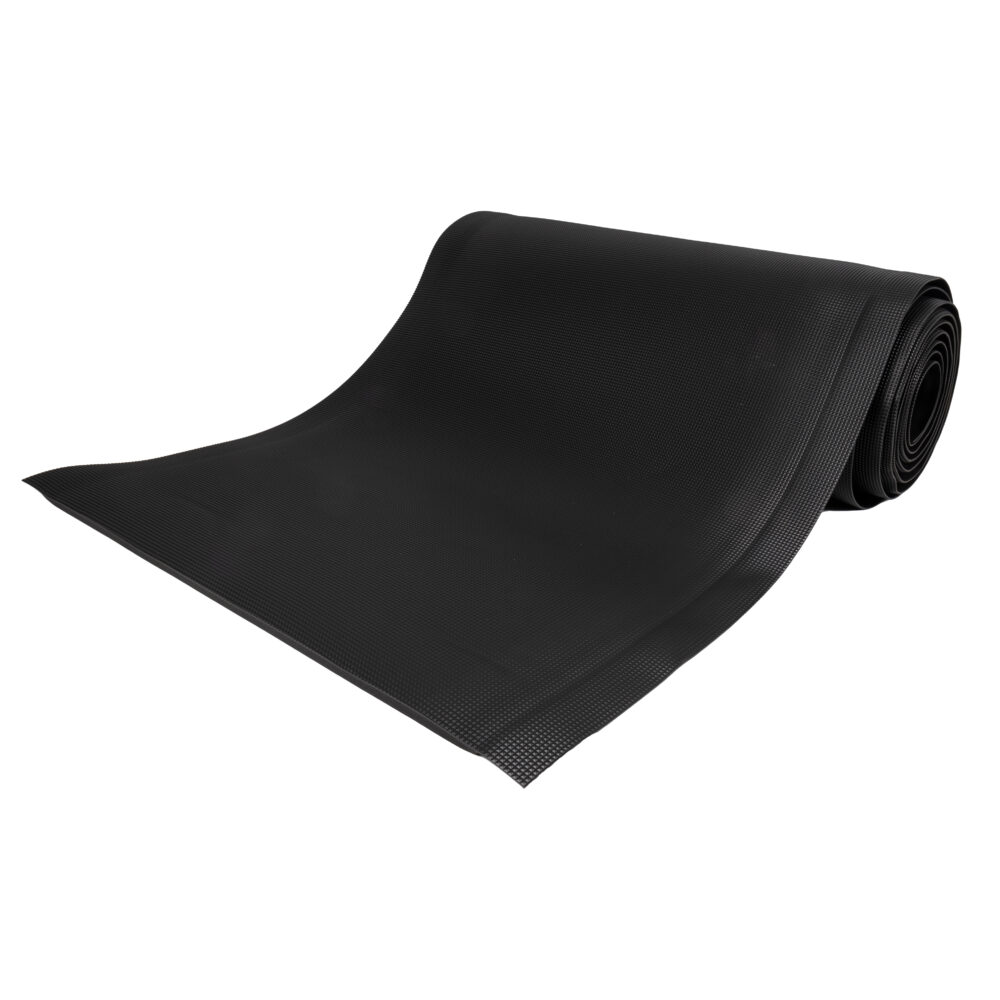

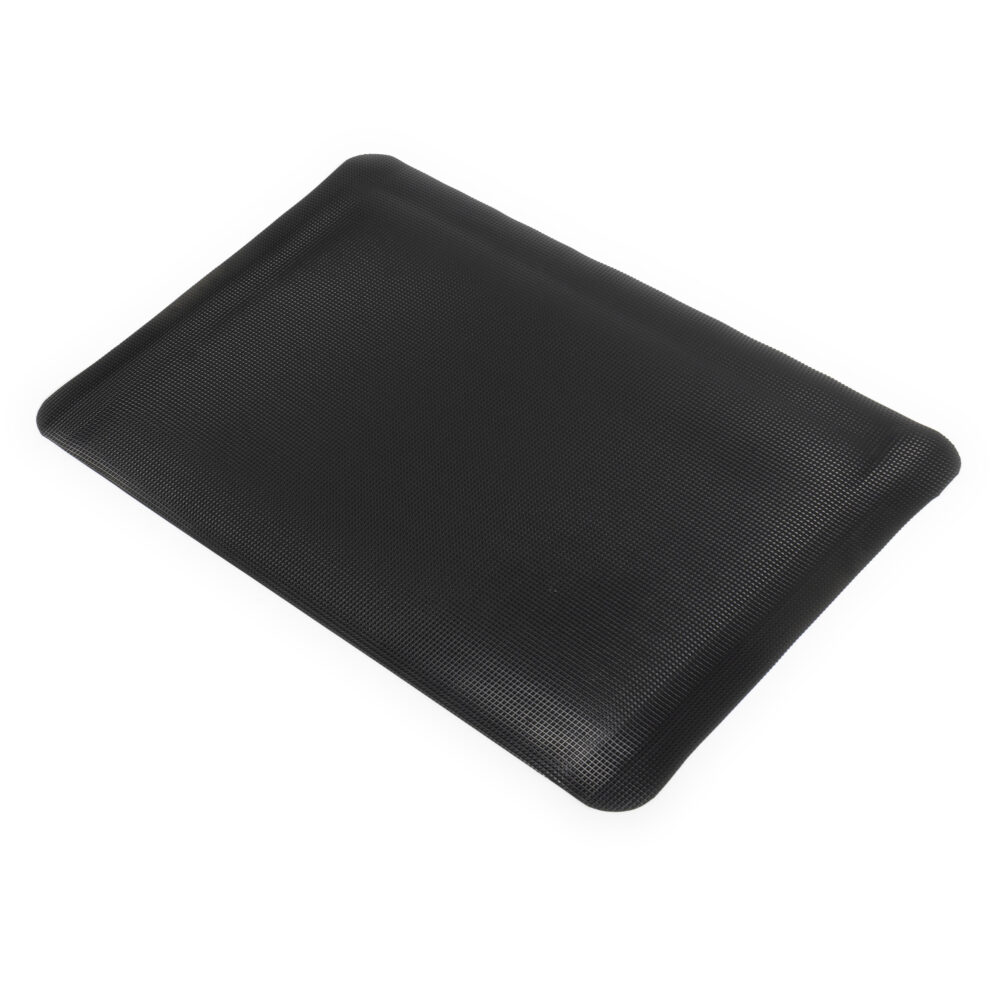

Diamond Tread Anti Fatigue Welding Mats
Fatigue relief for welding professionals
- Welders need relief from standing like any other professional.
- The heavy-duty top surface is both resilient and fire tested, whilst the soft foam underlayer provides cushioning for the feet. .

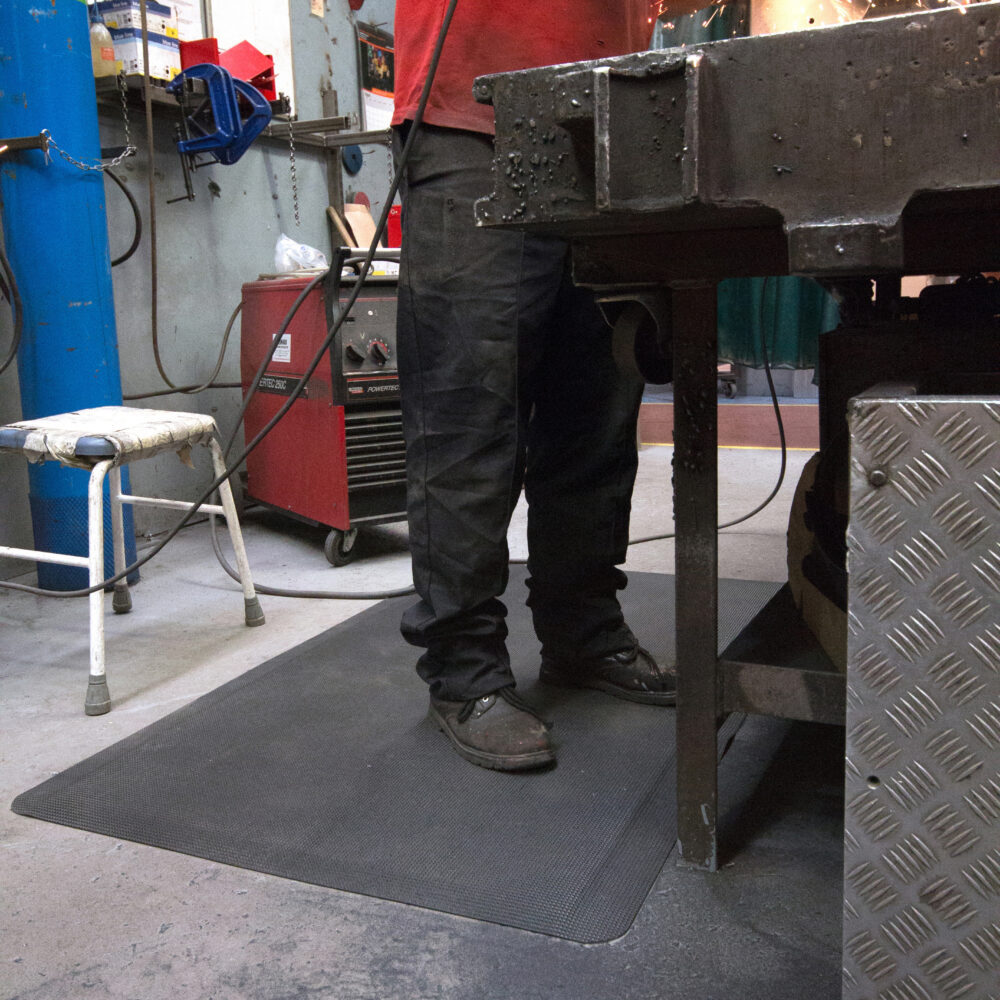

- Ideal for welding bays and demanding industrial use.

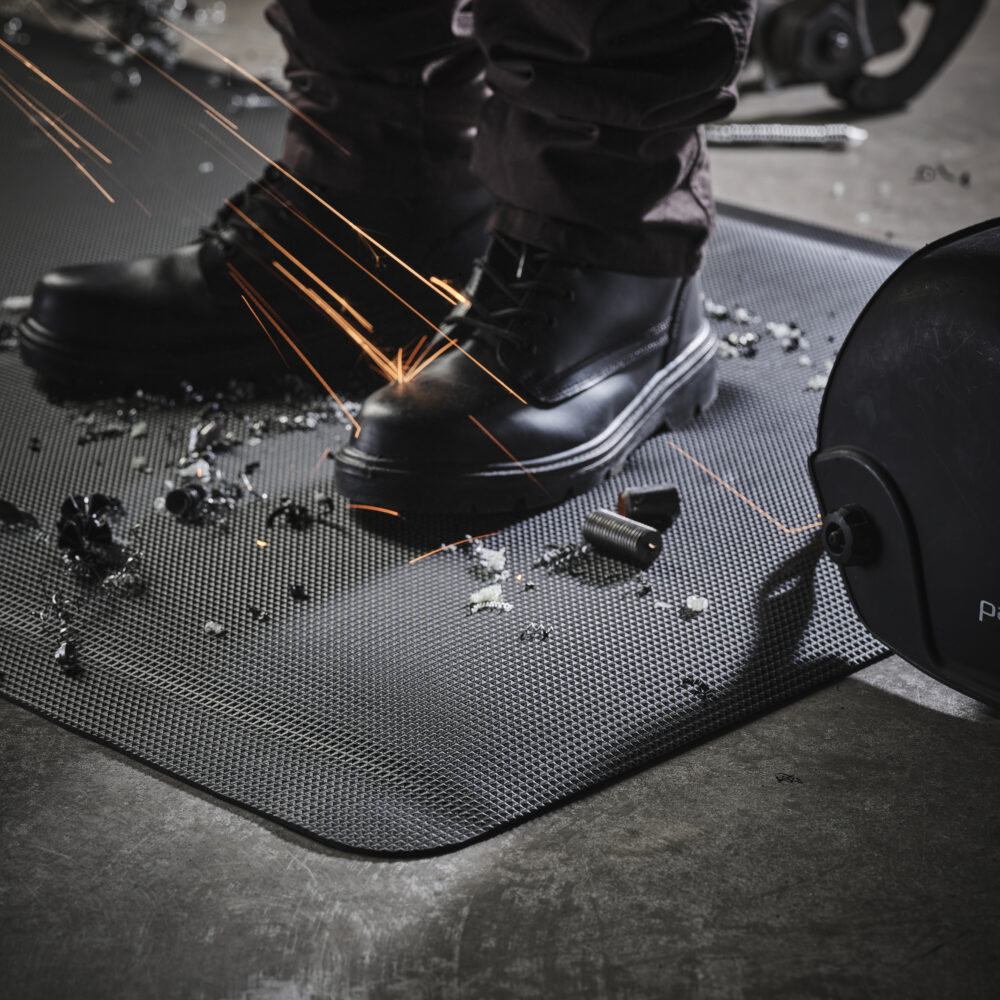

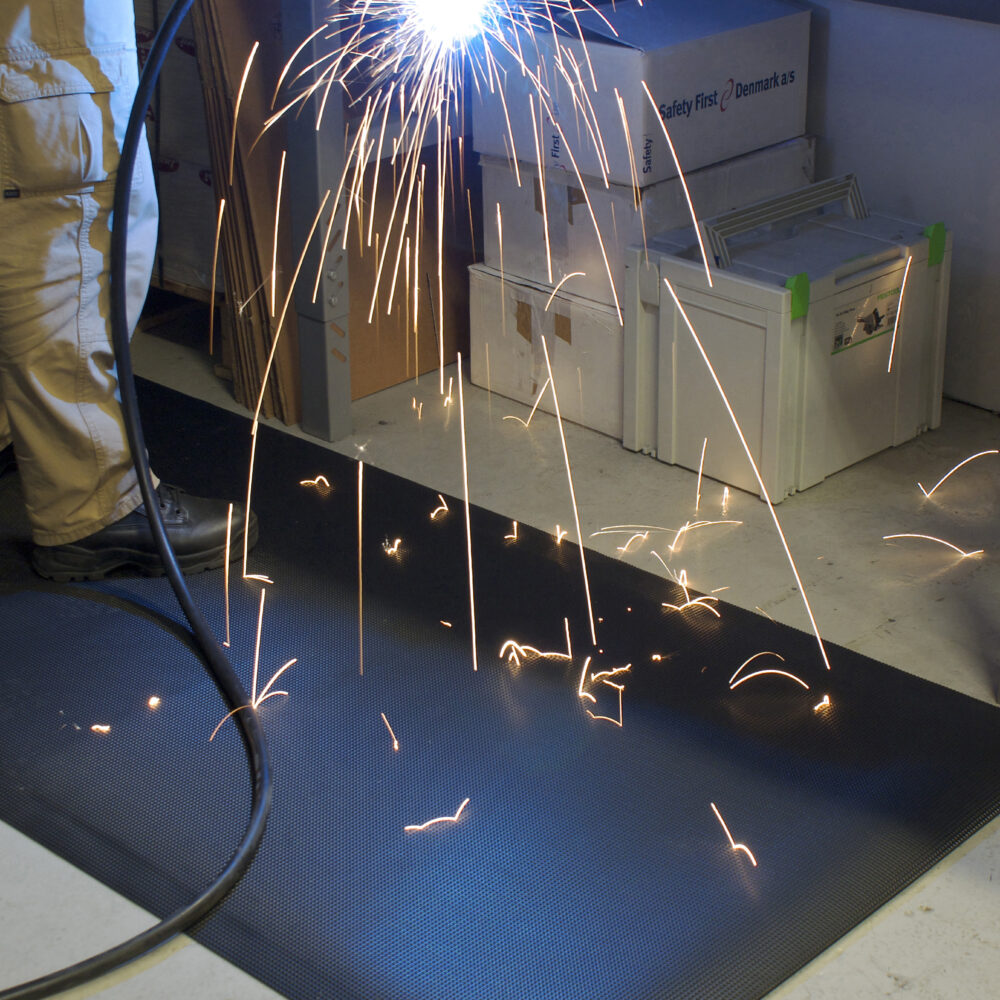

- Flame retardant top surface (tested to BS EN 13501-1) – so weld sparks aren’t an issue.
- Loose lay – can be moved easily.

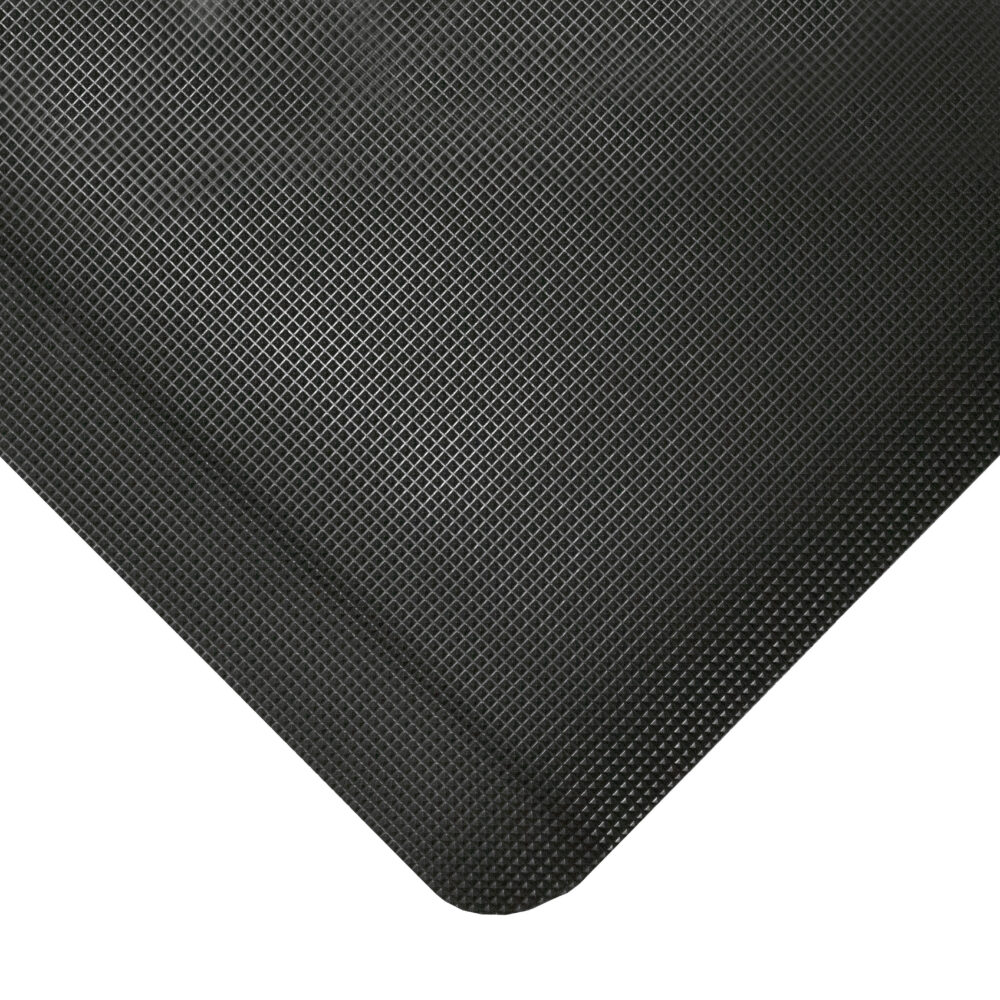

- Bevelled edges help avoid creating a trip risk.
- Parts
- Technical Specification
- Downloads
- Test Certificates
Parts | ||||
| Part Number | Size | Colour | Weight (kg) | Price Request |
|---|---|---|---|---|
| DTB010002 | 0.9 m x 1.5 m | Black | 9.32 | Request Price |
Technical Specification | |
| Material | Vinyl top surface with PVC foam backing (fusion bonded, not glued) |
| Surface Finish | Diamond pattern |
| Product Height | 15 mm |
| Roll Length | 18.3 m |
| Min. Operating Temperature | 0°C |
| Max. Operating Temperature | +55°C |
| Environmental Resistance | Suitable for dry indoor environments. Will withstand welding splatter and spillages of other hot materials |
| Typical Applications | Welding bays |
| Installation Method | Loose lay |
| Cleaning Method | Brush/mop the top surface |
| Fire Tested to | BS EN 13501-1 Class Cfl - s1 |
