Fatigue-Step Anti Fatigue Tiles

Fatigue relief for large shop floor areas

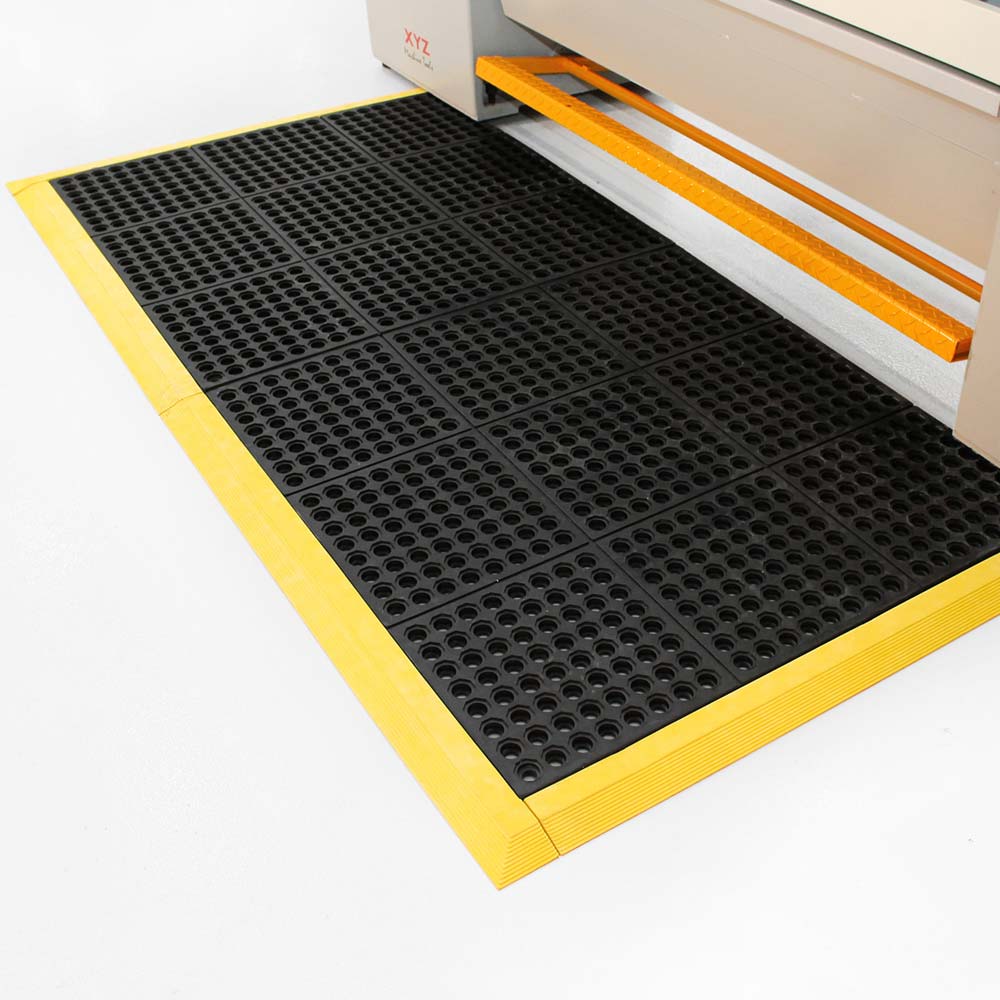

Tiles link together to provide an anti-fatigue surface for particularly wet or oily areas.
Soft, yet resilient rubber floor tiles.

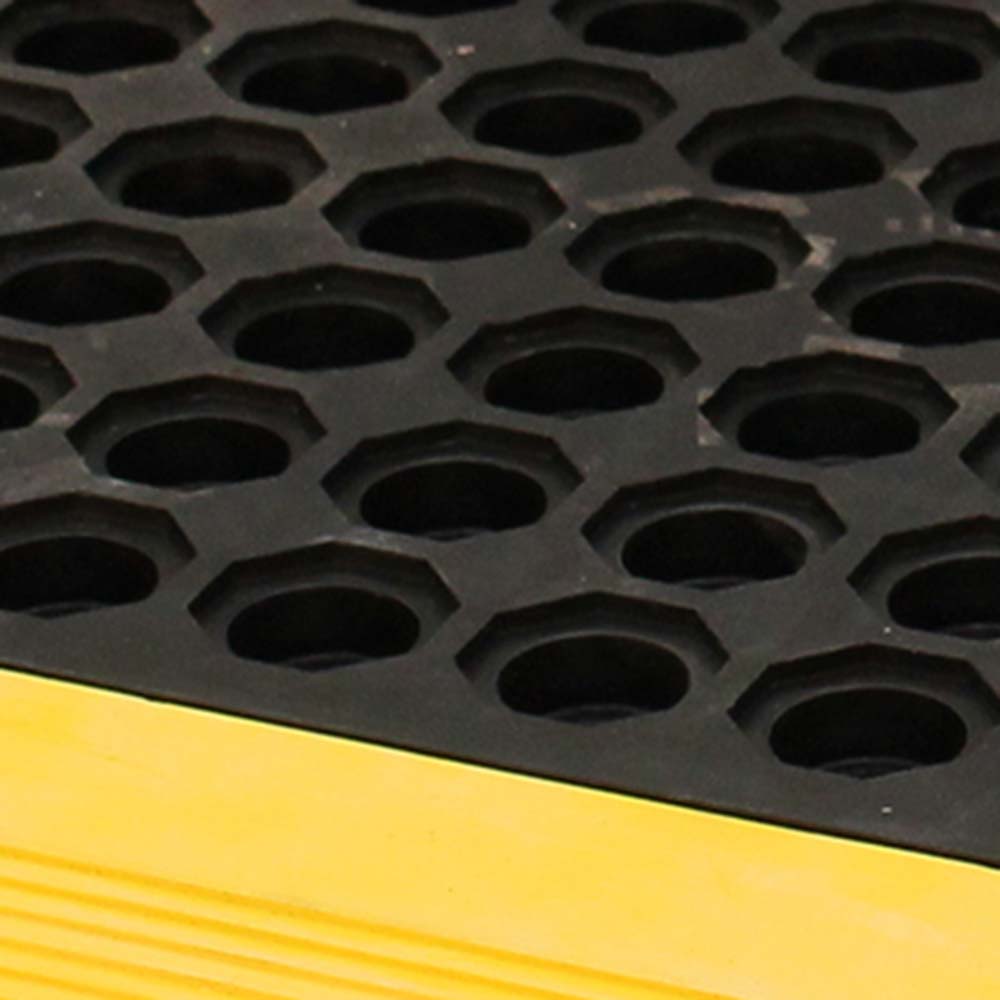

Open holes allow efficient drainage of spilt liquids.
Effective anti-fatigue properties for prolonged standing.
Slip tested to DIN 51130.

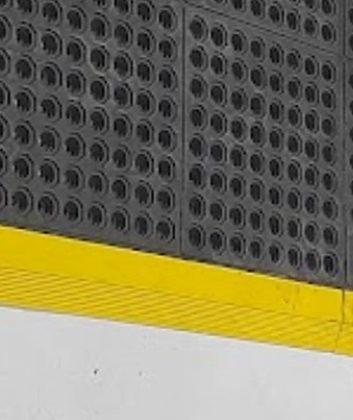

Optional ramped edging in yellow or black.

Part Number	Size	Description	Colour	Weight (kg)	Recycled Content %	Price Request
Parts
SS010001	0.9 m x 0.9 m	Tile	Black	10	80%	Qty: Request Price

Technical Specification
Material	Rubber mix, including >50% recycled material
Recycled Material Content %	80%
Surface Finish	Textured with holes to allow drainage
Product Height	18 mm
Hole Size	22 mm
Min. Operating Temperature	-20°C
Max. Operating Temperature	+130°C
Resistance to Chemicals	Natural rubber offers limited resistance to chemicals and oils
Environmental Resistance	Suitable for wet and dry environments. Will withstand welding splatter and spillages of other hot materials.
UV Resistance	Yes
Typical Applications	All industrial environments. Areas where swarf is prevalent.
Installation Method	Loose lay interlocking tiles
Cleaning Method	Wash with cold water, use vacuum cleaner or use pressure pump to remove dirt
Storage and application	Store at room temperature, free from deformations.
Tensile Strength	3 to 3.5 MPa
Notes	Silicone is used in the production process of the mats and a residue will possibly be left on the mat. This can be washed off using hot soapy water.
Slip Tested to	DIN 51130 - R10
