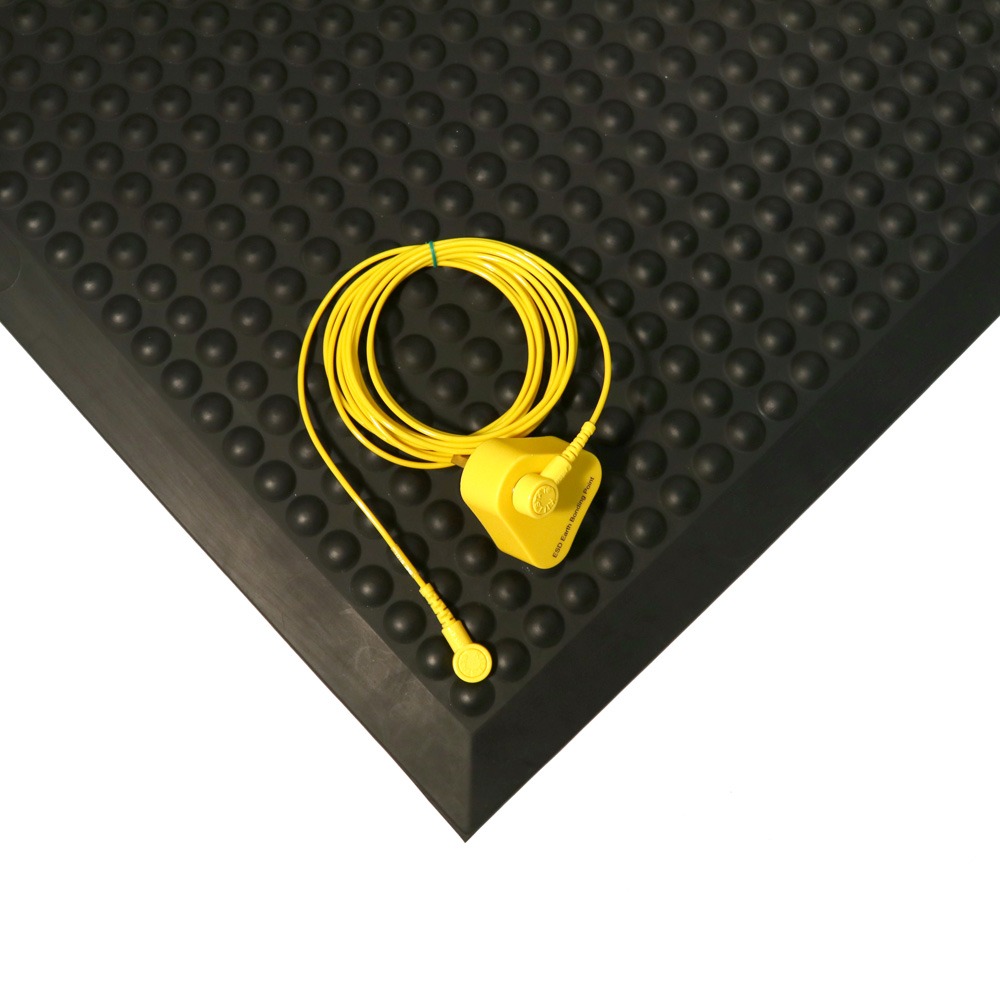

COBAelite® ESD ESD Anti Fatigue Mat
Bubble surfaced mat to tackle fatigue in ESD sensitive areas
- Static-dissipative anti-fatigue mat for comfort and safety.
- Conductive buried layer neutralises static charge, protecting components.
- Comfortable bubbled surface promotes subtle movement further reducing fatigue.
- Grounded via a 10 mm male stud fitted to the mat.
- Meets or exceeds IEC61340-5-1 resistance requirements.
- Resistance to a groundable point (Rgp): 2.4 x 10⁶ Ω
- Parts
- Technical Specification
- Accessories
- Downloads
- Installation Guides
- Test Certificates
Parts | ||||
| Part Number | Size | Colour | Weight (kg) | Price Request |
|---|---|---|---|---|
| SE010003ESD | 0.9 m x 1.2 m | Black | 4.5 | Request Price |
Technical Specification | |
| Material | PU |
| Surface Finish | Bubble |
| Product Height | 14 mm |
| Product Weight | 3 kg ± 3% |
| Min. Operating Temperature | -40°C |
| Max. Operating Temperature | +80°C |
| Resistance to Chemicals | PU offers limited resistance to chemicals and oils |
| Environmental Resistance | Suitable for dry indoor environments |
| UV Resistance | Yes |
| Fire Tested to | BS EN 13501-1 Class Efl - s1 |
Accessories |
