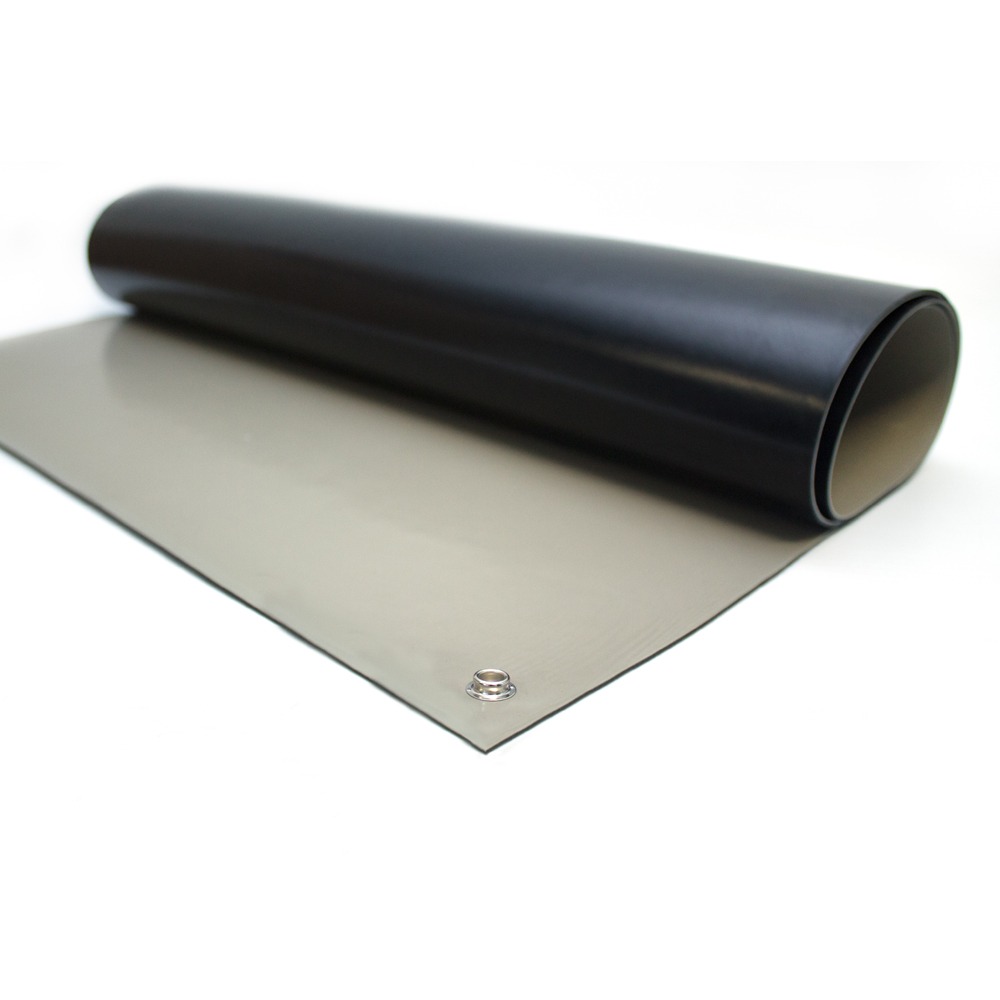

ESD Rubber Bench Mat ESD Mat
Economical ESD work bench mat
- Rubber ESD bench mat fitted with 10 mm male stud.
- Solder iron resistant and low reflecting surface, ideal for working with electrical components.
- Easy to clean smooth surface.
- Conforms to IEC 61340-5-1.
- Resistance point to point (Rp-p): 3.4 x 10⁴ Ω.
- Resistance to groundable point (Rgp): 8.8 x 10⁴ Ω.
- Volume resistivity (ρv): 6.7 x 10¹ Ω.
- Surface resistivity (ρs): 4.4 x 10⁶ Ω.
- Volume resistance (Rv): 4.5 x 10⁴ Ω.
- Surface resistance (Rs): 4.4 x 10⁵ Ω.
- Parts
- Technical Specification
- Accessories
- Downloads
- Test Certificates
Parts | ||||
| Part Number | Size | Colour | Weight (kg) | Price Request |
|---|---|---|---|---|
| ESDB010005 | 0.6 m x 1.2 m | Black | 2.25 | Request Price |
Technical Specification | |
| Material | Rubber |
| Surface Finish | Smooth |
| Product Height | 2 mm |
| Min. Operating Temperature | -30°C |
| Max. Operating Temperature | +70°C |
| Environmental Resistance | Suitable for dry indoor environments |
Accessories |
