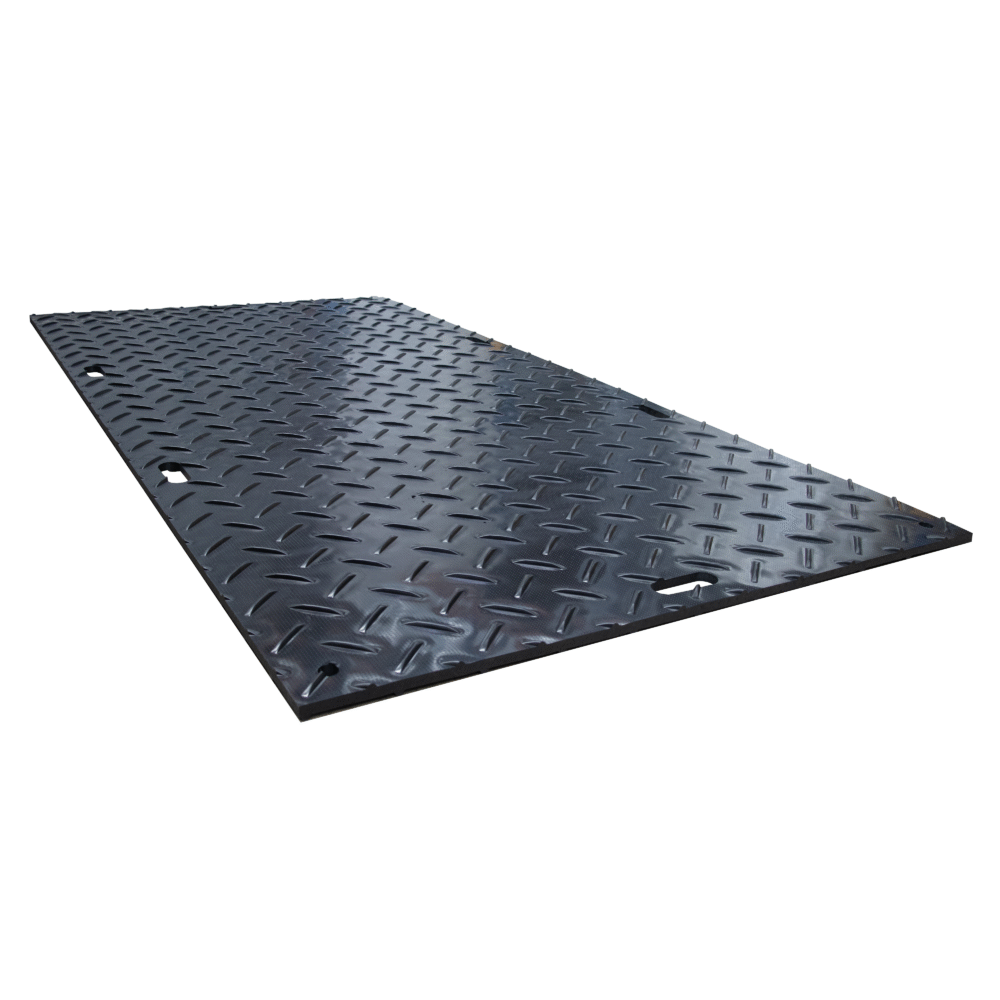

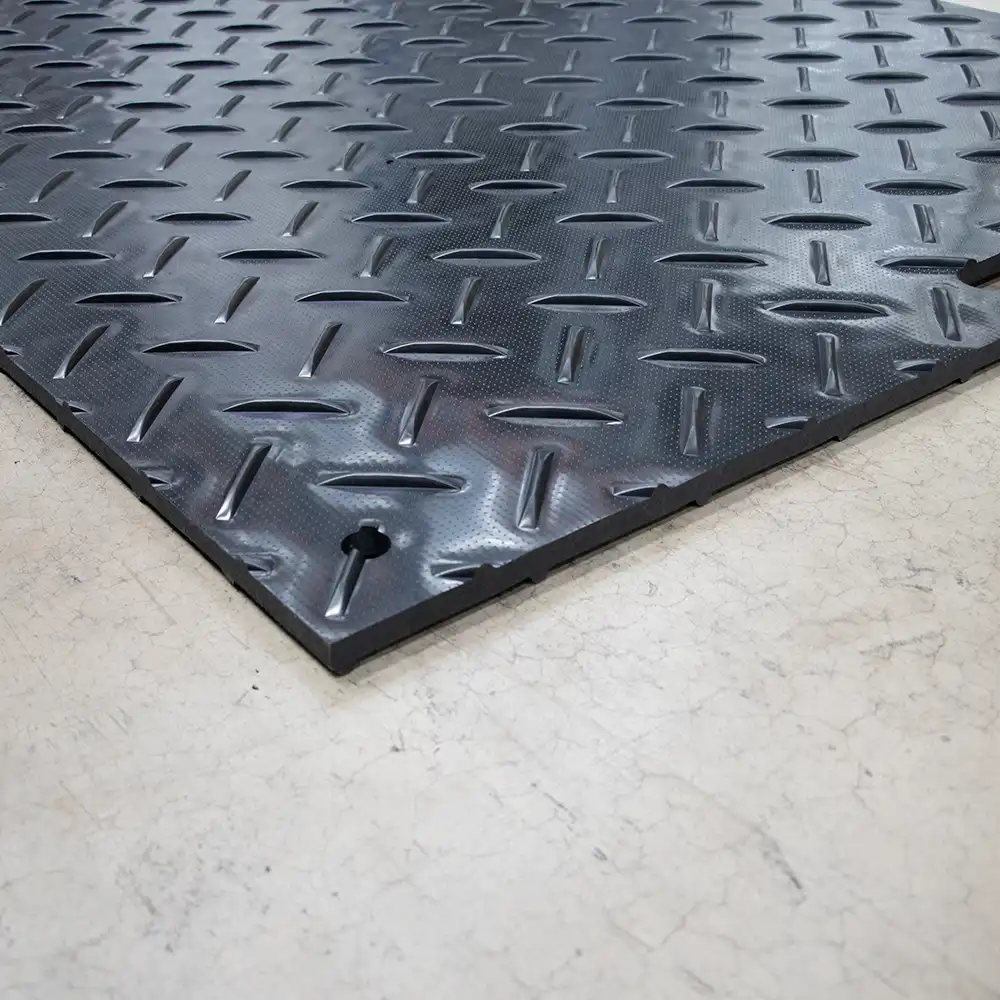

COBATrack HD Mat Heavy-Duty Ground Mat
Temporary roadways for serious weight up to 179 Tonnes
COBA > COBATrack HD Mat
- Engineered from recycled HDPE for heavy plant and machinery access.
- Independently tested to withstand loads of up to 179.49 tonnes (tested on a tray containing Type 1 MOT aggregate), making it suitable for the most demanding temporary access applications.
- Designed to withstand pressure of up to 11.075 kN/m without compromising structural performance.

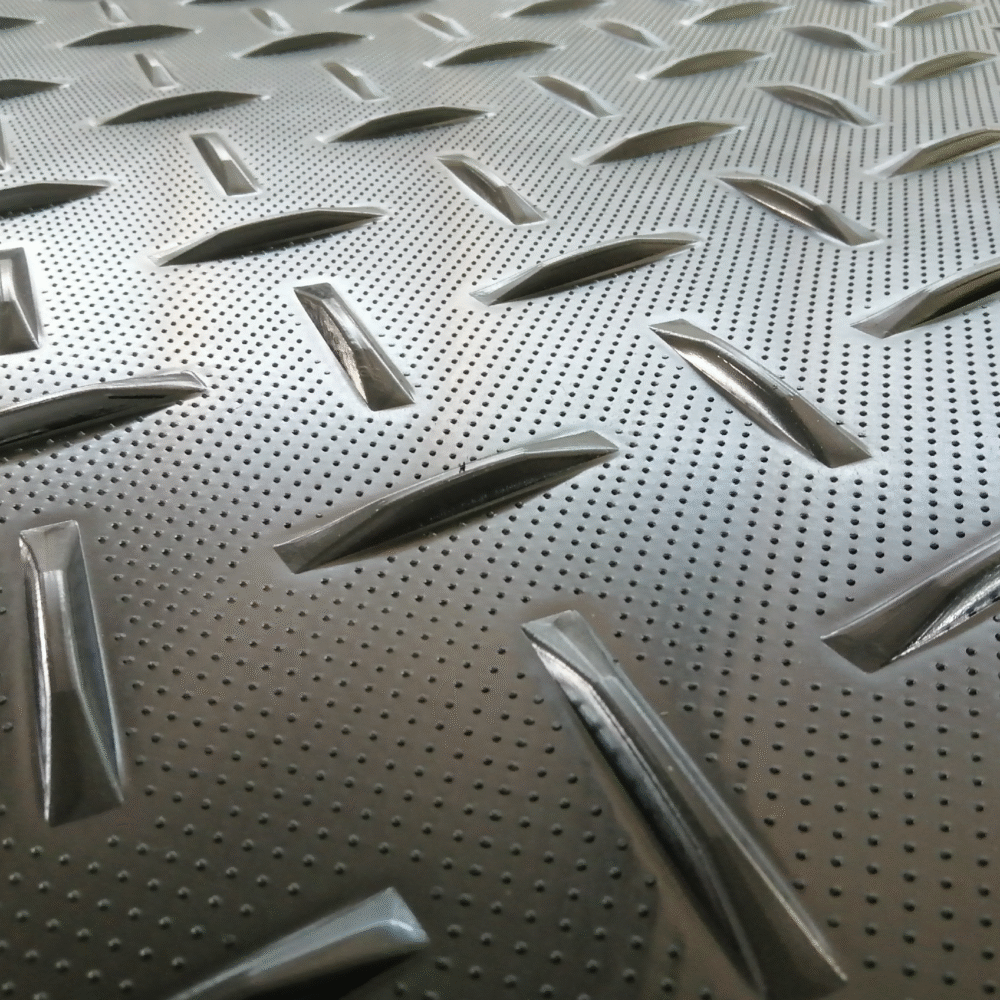

- Dual heavy traction surfaces for reliable all-weather grip.
- 15 mm thick structural design for maximum durability.

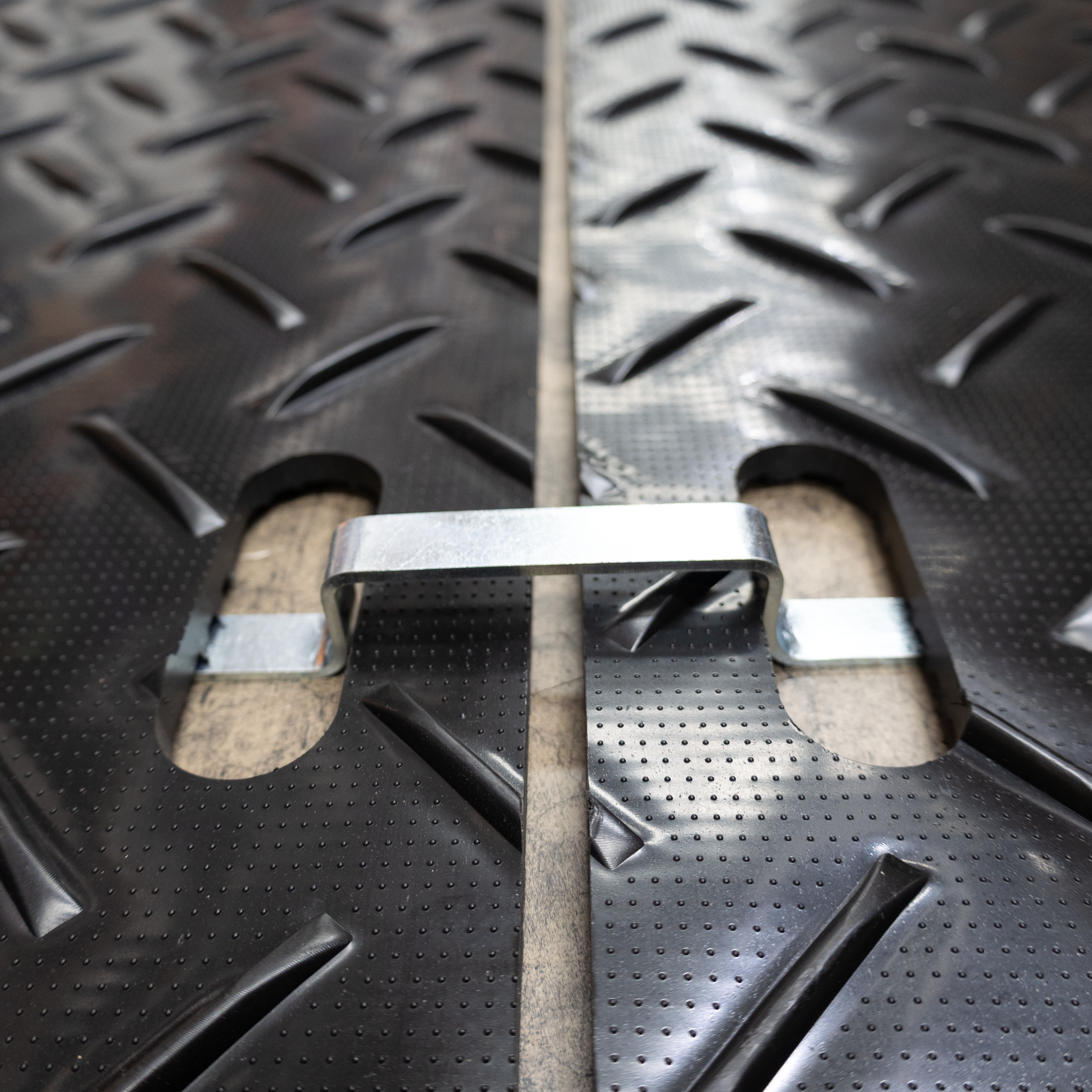

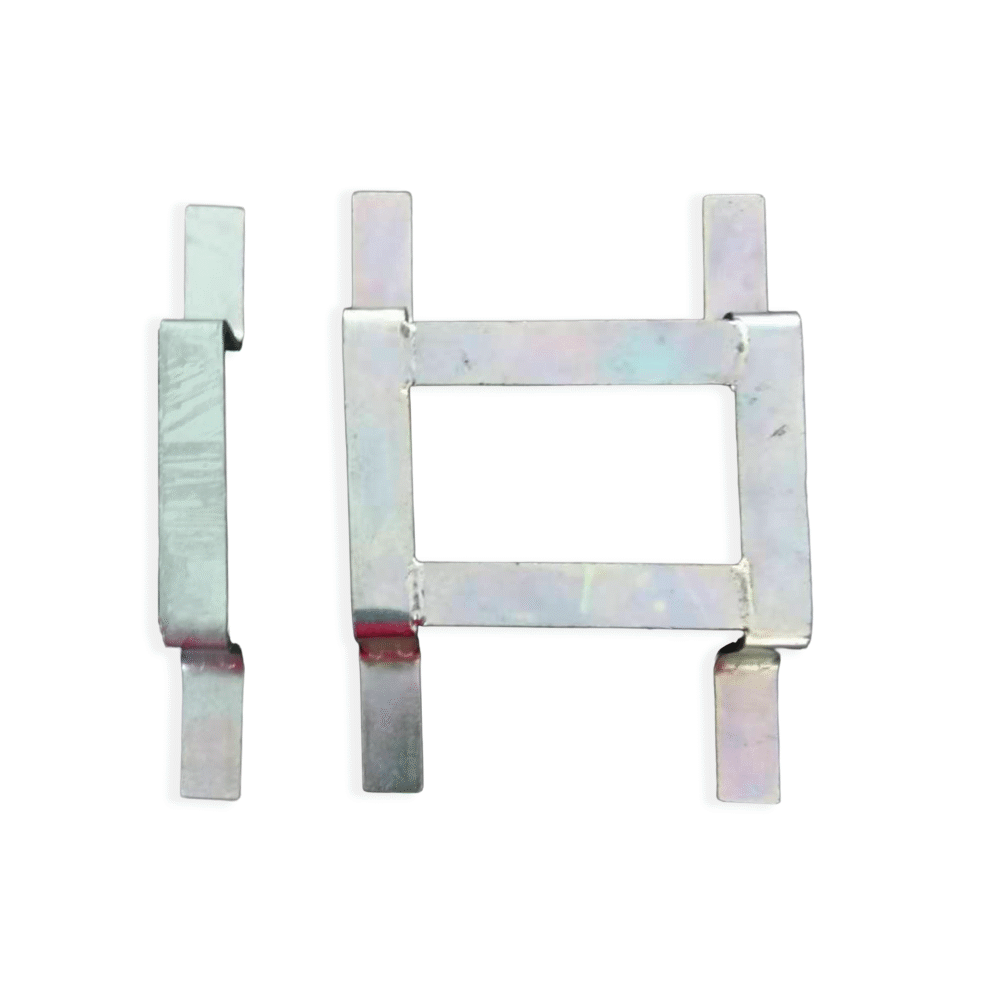

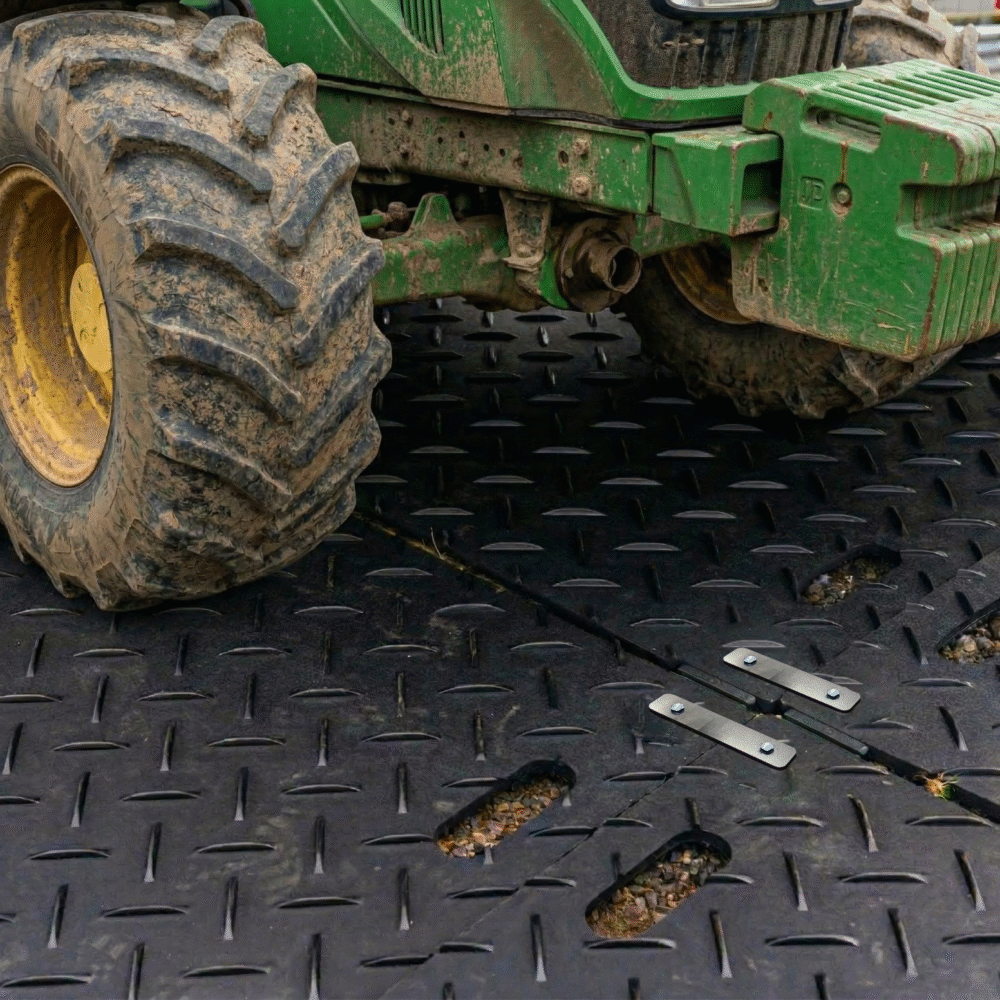

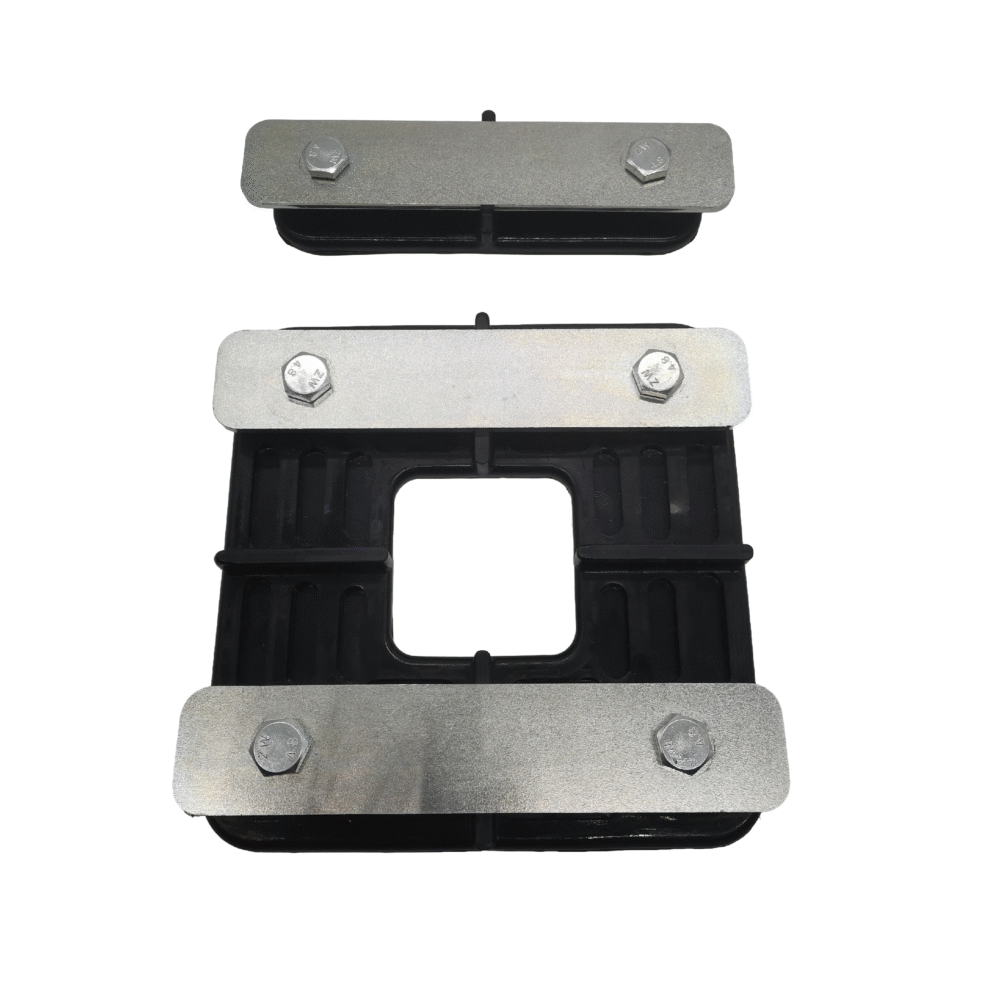

- Compatible with PU and steel connectors for secure configuration.
- Reusable solution for large-scale construction and infrastructure projects.

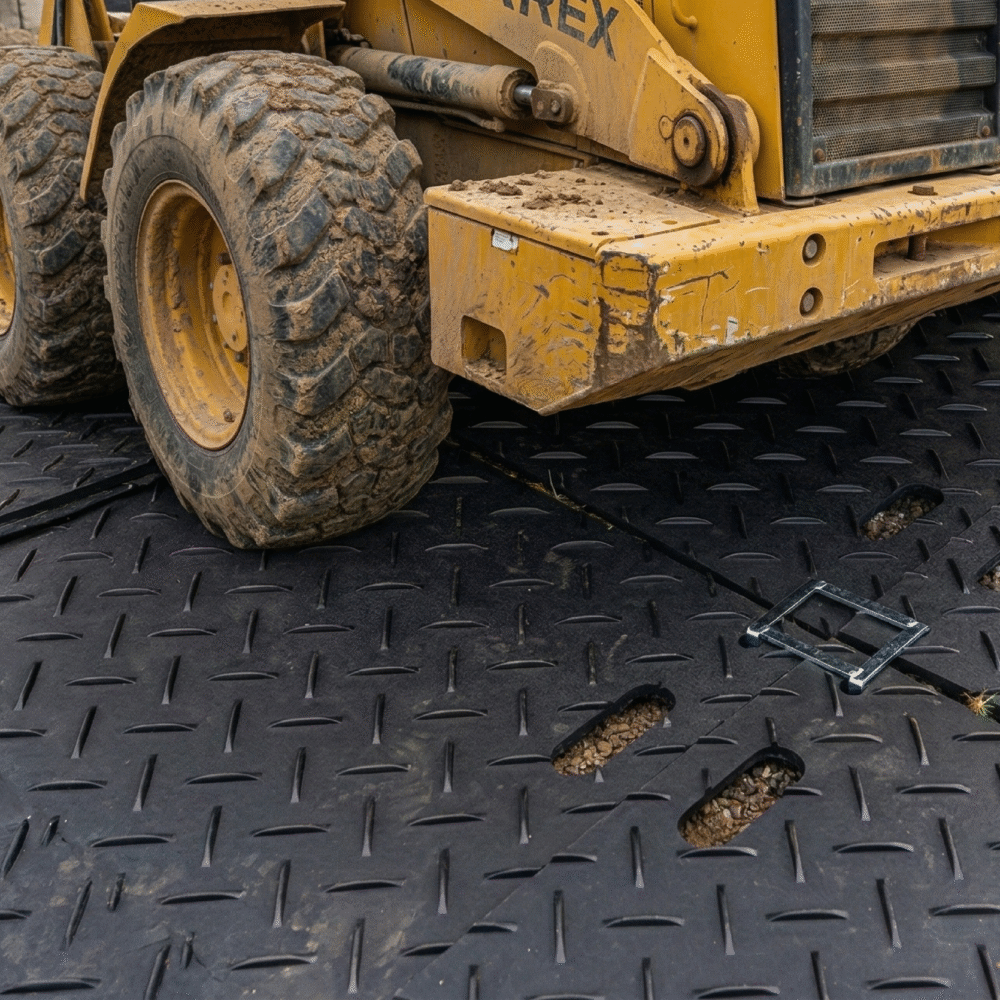

- Chosen for heavy plant access, crane pads and infrastructure works where substantial load distribution is required.
- Suitable for civil engineering projects, utilities works and large-scale construction developments.
- Parts
- Technical Specification
- Accessories
- Downloads
- Installation Guides
- Test Certificates
Parts |
||||||
| Part Number | Size | Description | Colour | Weight (kg) | Price Request | View Retailer |
|---|---|---|---|---|---|---|
| TT010001HD | 1.2 m x 2.4 m | HD Mat | Black | 44 | Request Price |
Technical Specification |
|
| Material | High-Density Polyethylene (HDPE) |
| Product Height | 15 mm |
| Min. Operating Temperature | -20°C |
| Max. Operating Temperature | +40°C |
| Environmental Resistance | All weather conditions |
| Typical Applications | Temporary roadways, heavy construction, military operations |
| Installation Method | Loose lay |
| Tensile Strength | 29.1MPa |
| Shore Hardness: | D1/15:64 |
| Tensile Modulus: | 1370MPa |
| Compression Test: | at 40% strain - 63.6MPa |
| Load Achieved (Tonnes): | 179.49 |
| Pressure (kN/m): | 11075 |
