PLAN® A Entrance Matting
Defend against dirt and moisture with versatile aluminium entrance matting
COBA > PLAN® A
- Robust, high-quality aluminium system for heavy-duty use, designed to cope with high footfall.
- Flexible, yet durable PVC linking joints for ease of handling and easy fitting.
- Custom-made to your specifications.
- Choose from one, or a combination of different surface options.
- Now available with vibrant coloured needle punch or needle felt polypropylene carpet inserts (as used in our Logomat Precision products).
- Manufactured in the UK.
- Fire tested to BS EN 13501-1 and slip tested to BS 7976-2.
Styles Available
Grey Needlepunch Open

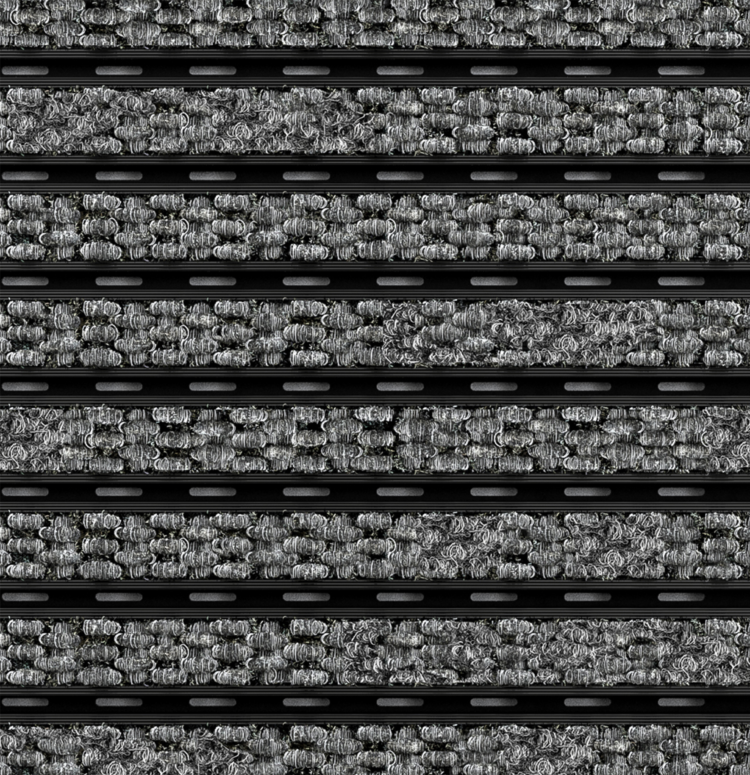

Grey Needlepunch Open - Black Anodised
Grey Needlepunch Closed

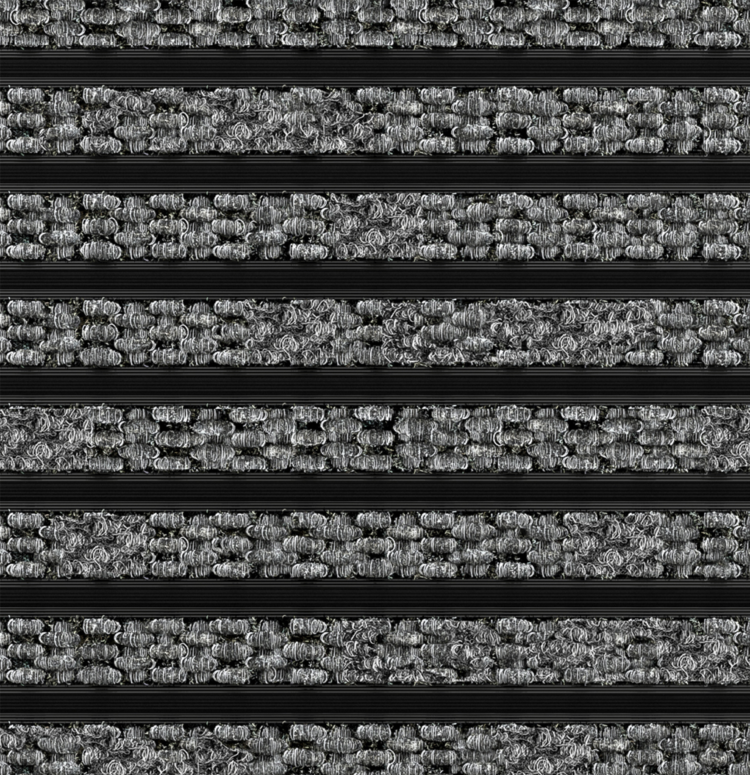

Grey Needlepunch Closed - Black Anodised
Charcoal Needlepunch Open

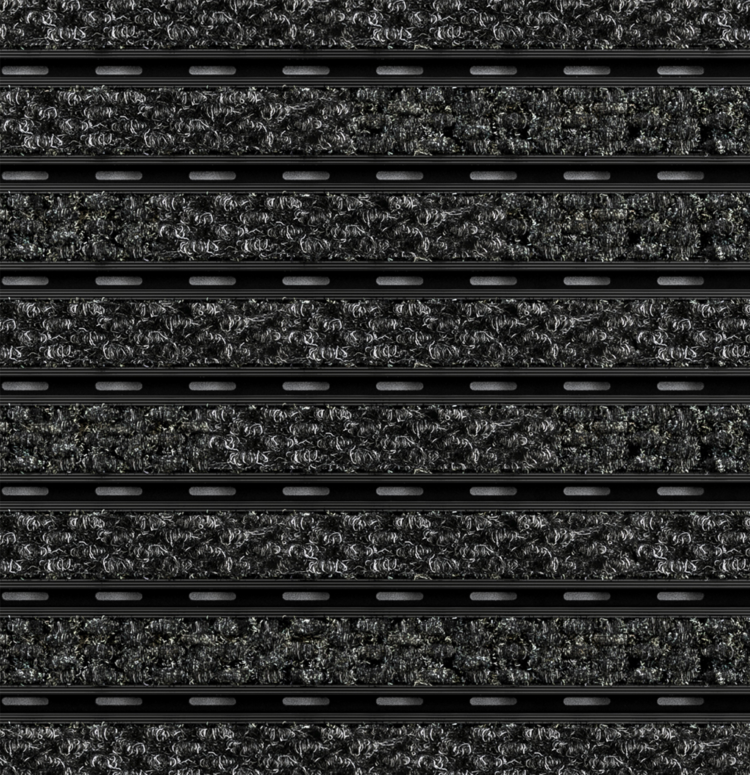

Charcoal Needlepunch Open - Black Anodised
Charcoal Needlepunch Closed

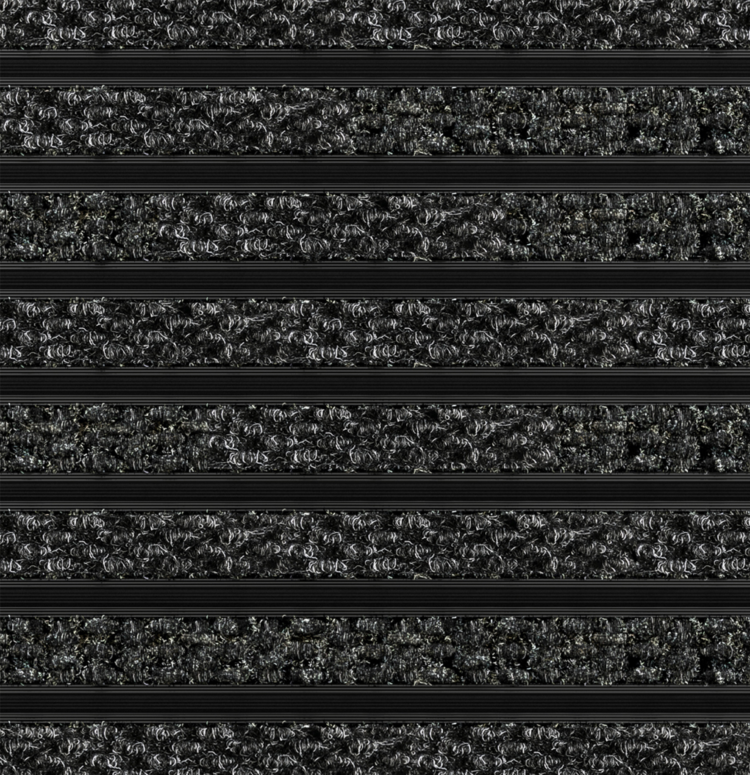

Charcoal Needlepunch Closed - Black Anodised
Brown Alba Open

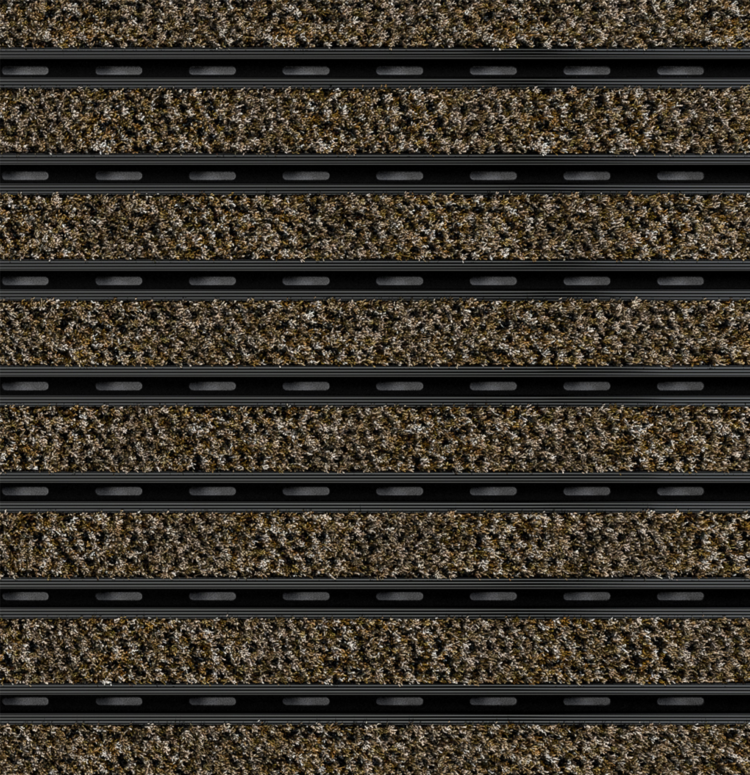

Brown Alba Open - Black Anodised
Brown Alba Closed

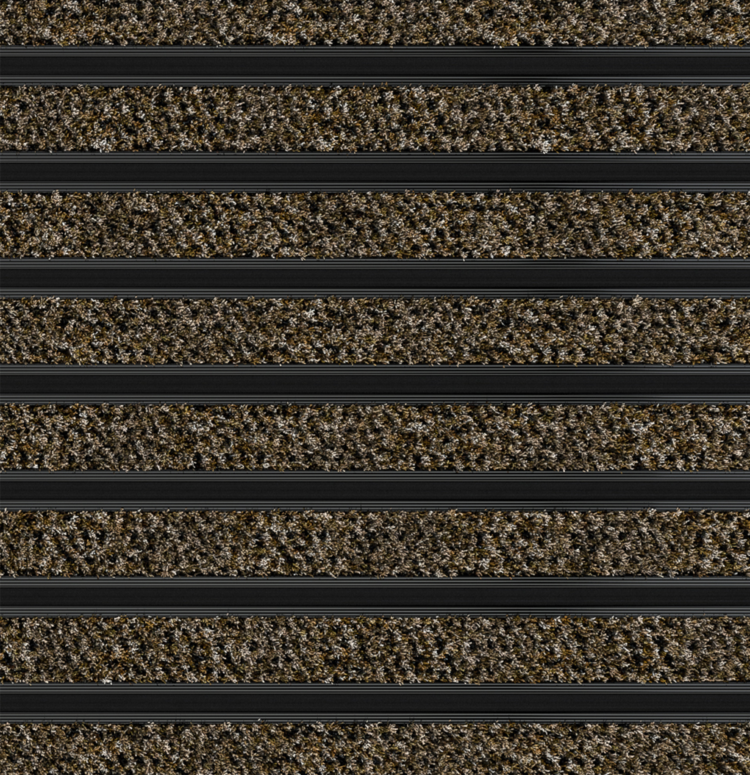

Brown Alba Closed - Black Anodised
Grey Alba Open
Grey Alba Open - Black Anodised
Grey Alba Closed
Grey Alba Closed - Black Anodised
Blue Alba Open

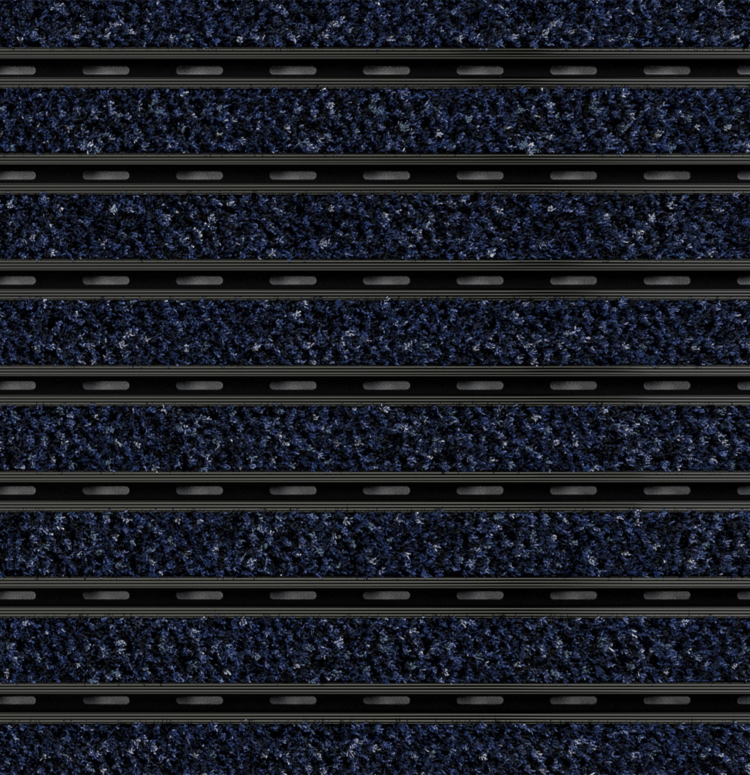

Blue Alba Open - Black Anodised
Blue Alba Closed

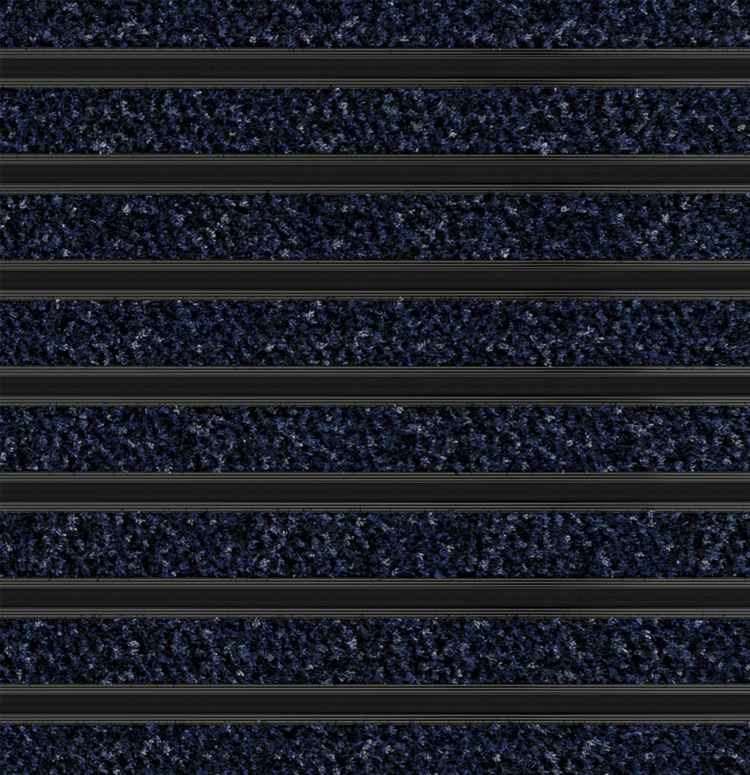

Blue Alba Closed - Black Anodised
Anthracite Alba Open Low Profile

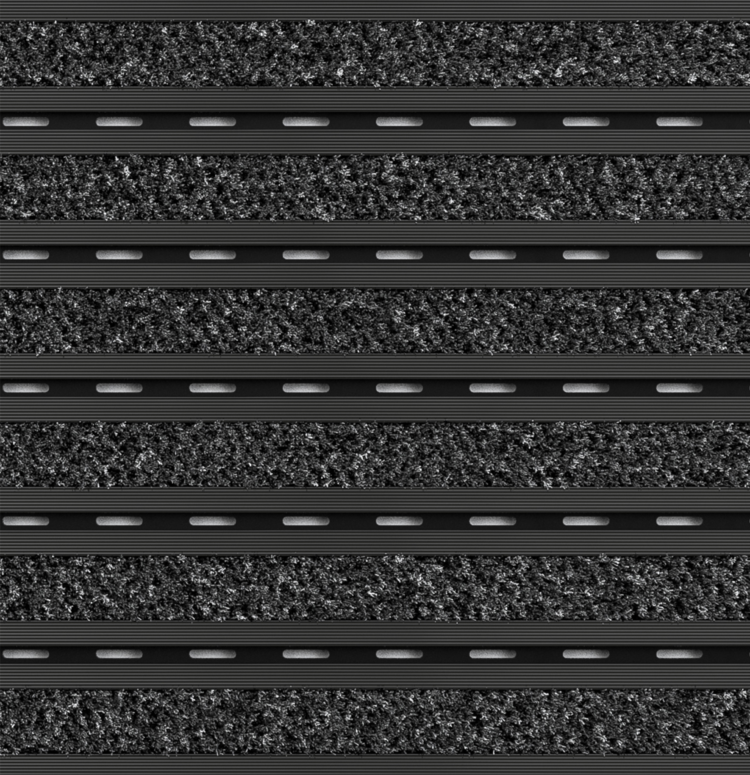

Anthracite Alba Open
Anthracite Alba Closed

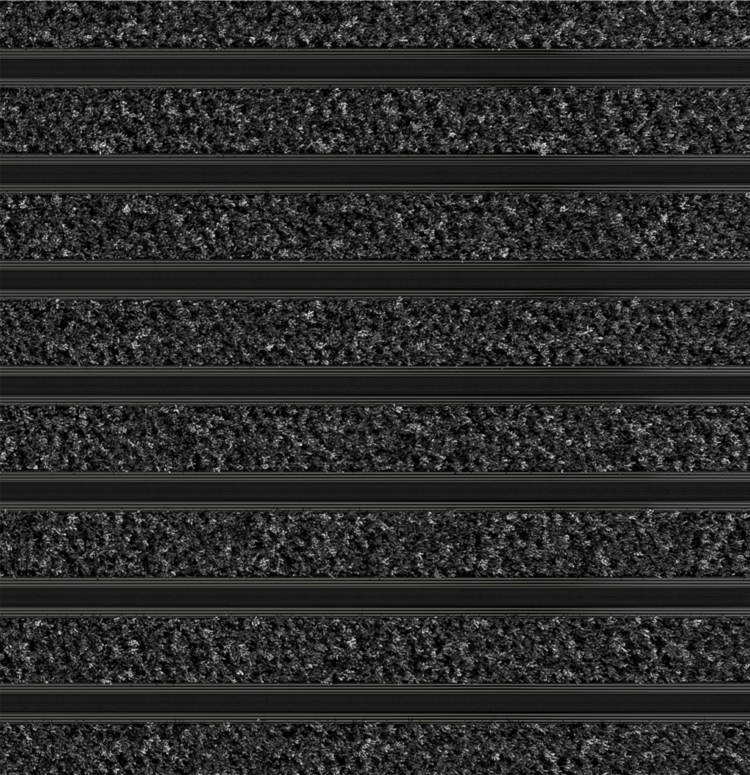

Anthracite Alba Closed - Black Anodised
Scraper Open
Scraper Open - Black Anodised
Scraper Closed
Scraper Closed - Black Anodised
PVC Brushes Open
PVC Brushes Open - Black Anodised
PVC Brushes Closed

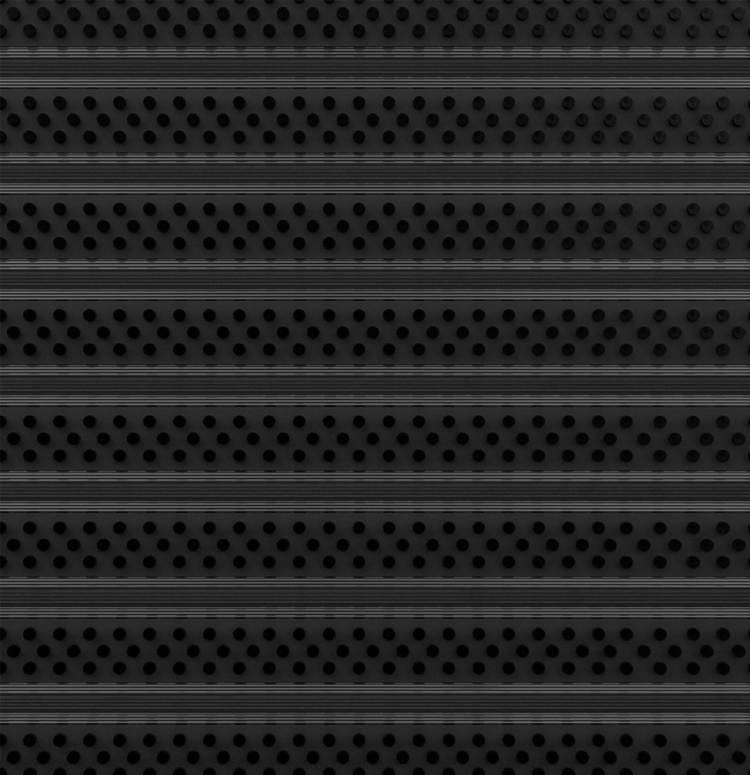

PVC Brushes Closed - Black Anodised
Assorted Open Low Profile
Assorted Closed
- Parts
- Technical Specification
- Downloads
- Installation Guides
- Test Certificates
Parts |
||||
| Part Number | Size | Colour | Price Request | View Retailer |
|---|---|---|---|---|
| PLANA1 | Special | Various | Request Price |
Technical Specification |
|
| Material | Aluminium rails, PVC connection strips, ECONYL® Regenerated Nylon, PP or EPDM inlays |
| Surface Finish | Carpet, brushes or scrapers |
| Product Height | 10 mm, 17 mm |
| Durability | Heavy to very heavy traffic entrances |
| Environmental Resistance | Suitable for wet and dry environments |
| UV Resistance | Yes |
| Typical Applications | Entrance areas |
| Installation Method | Installed in to recessed matwell or surface mounted with ramped edges |
| Other Product Performance Information | Uniform floor load = 14.36 KN/ m². Wheel load 159 kg per wheel |
| Fire Tested to | Alba inserts: BS EN 13501-1 Class Cfl - s1. PVC scraper inserts: BS EN 13501-1 Class Cfl - s2. |
| Notes | Alba is a tufted carpet product and therefore its appearance can vary depending on the direction of the pile and the light in the surrounding environment. To achieve a uniform appearance consider hoovering the product in a single direction. |
| Slip Tested to | BS 7676-2 Pendulum Slip Test: Alba inserts, Needlepunch inserts. BS EN 16165: Multi directional EPDM scrapers. |
BIM Objects
Download our BIM Objects to use within your designs.
Product Information
DatasheetLiterature
We offers a range of sales and marketing support materials. Select from any of the items below to start downloading.
Plan.a is a versatile aluminium mat suitable for heavy-duty use. The profile has been manufactured from 30% recycled aluminium and is custom-made to order with your chosen inserts. A number of different inserts can be used in the aluminium mat, such as carpet or PVC scraper inserts. This mat is suitable for outdoor or indoor use and has high durability to cope with heavy or very heavy traffic entrances. See our full range of Aluminium Entrance Matting.
